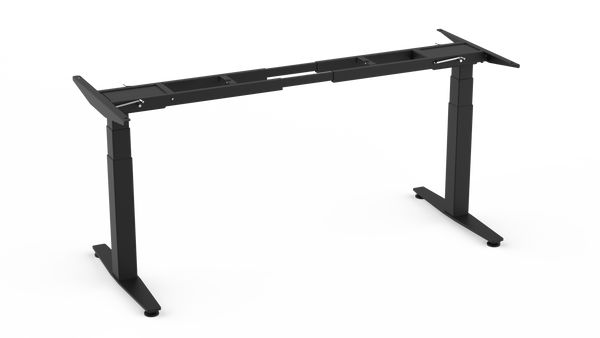

Rize up! with Compel's Rizer Height Adjustable Bases. Available in 2-leg with an optional 3-leg conversion kit, Rizer bases accommodate a wide range of worksurfaces and are available in three base colors.
Rizer 2-leg bases feature Quick Connect top frame assembly, which delivers 5x faster installation compared to traditional construction. It also facilitates easy reconfiguration with one simple step. Check out the assembly video here.
FEATURES
- Comes with Compel Vertebrae cable management device
- Pair with a Laminate Worksurface
- Leg State: 3-Stage
- Speed: 36mm / 1.4" per second
- Stroke: 662mm / 26.0"
- Leg Size: 70 x 70mm / 2.75" x 2.75"
- Height Range: BIFMA G1: 550-1212mm / 21.7-47.7"
- Column Foot Connection: T-Leg
- Foot Length: 600mm / 23.6"
- Foot Structure: Solid Steel
- Remote: 6-Button Programmable
- Power Cable: 2.75M / 9'
- Remote Cable: 0.5M / 1.75'
MODEL SPECIFIC
- 2-Leg
- Weight Capacity: 120kg / 264lbs
- Worksurface Range: 48-72" W x 24-30"
- 3-Leg Conversion
- Weight Capacity: 120kg / 264lbs
- Worksurface Range: 48-72" W x 24-30"D main surface, 42-48"W x 24"D return surface
ASSEMBLY INSTRUCTIONS
